Triumph T140 Fork Brace
Triumph T140 Fork Brace
Click here for Fork Brace Installation Instructions

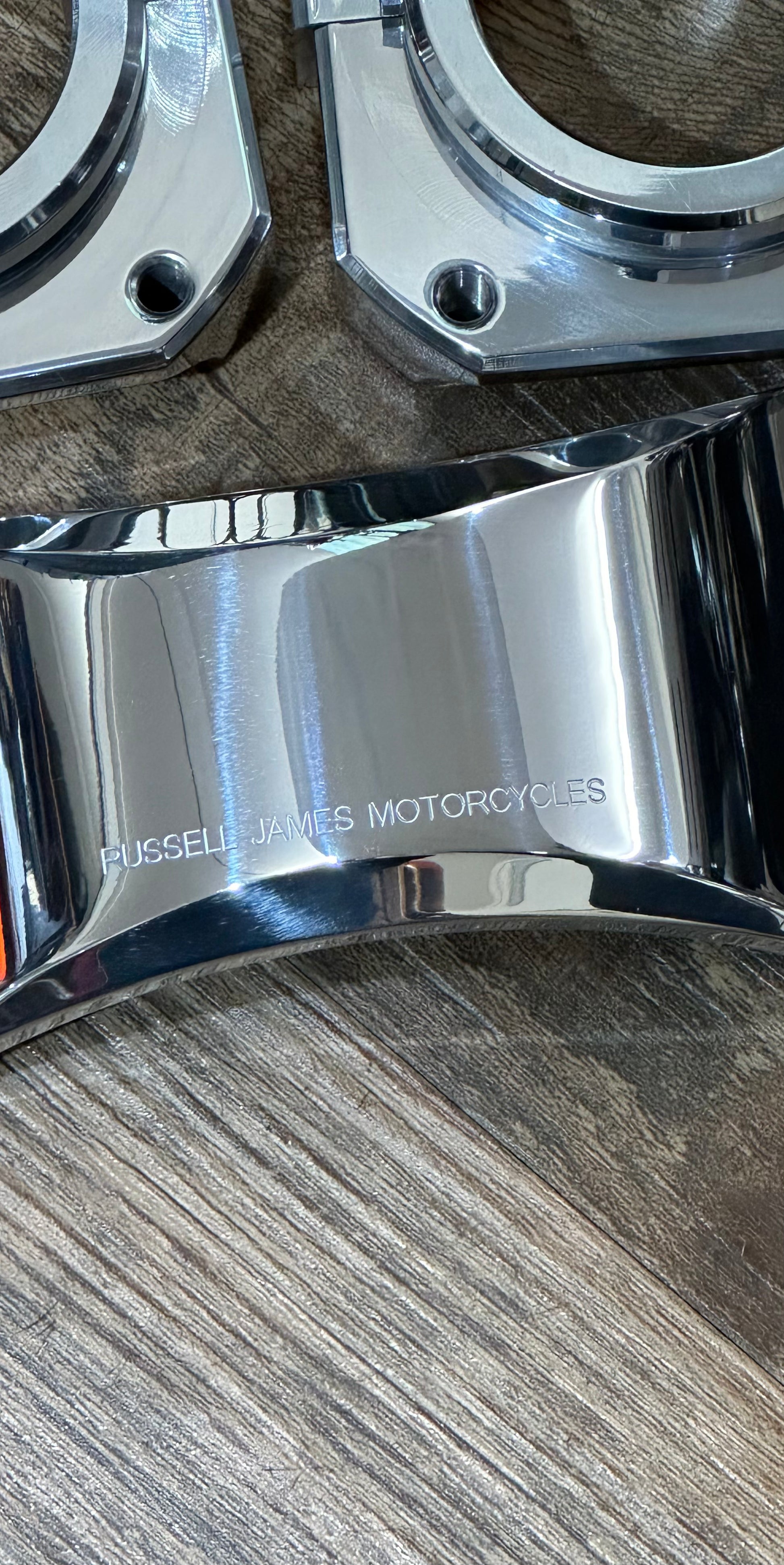

This fork brace has been designed & manufactured inhouse in collaboration with Russell James Motorcycles and is available here
This period style brace is ideally suited for those doing restoration projects, café racer builds or custom creations, taking over where the micron brace finished and adding our own unique style. These braces are designed to be easy to fit and give the desired amount of stiffness back into the front end, helping with cornering and high speed wobbles.

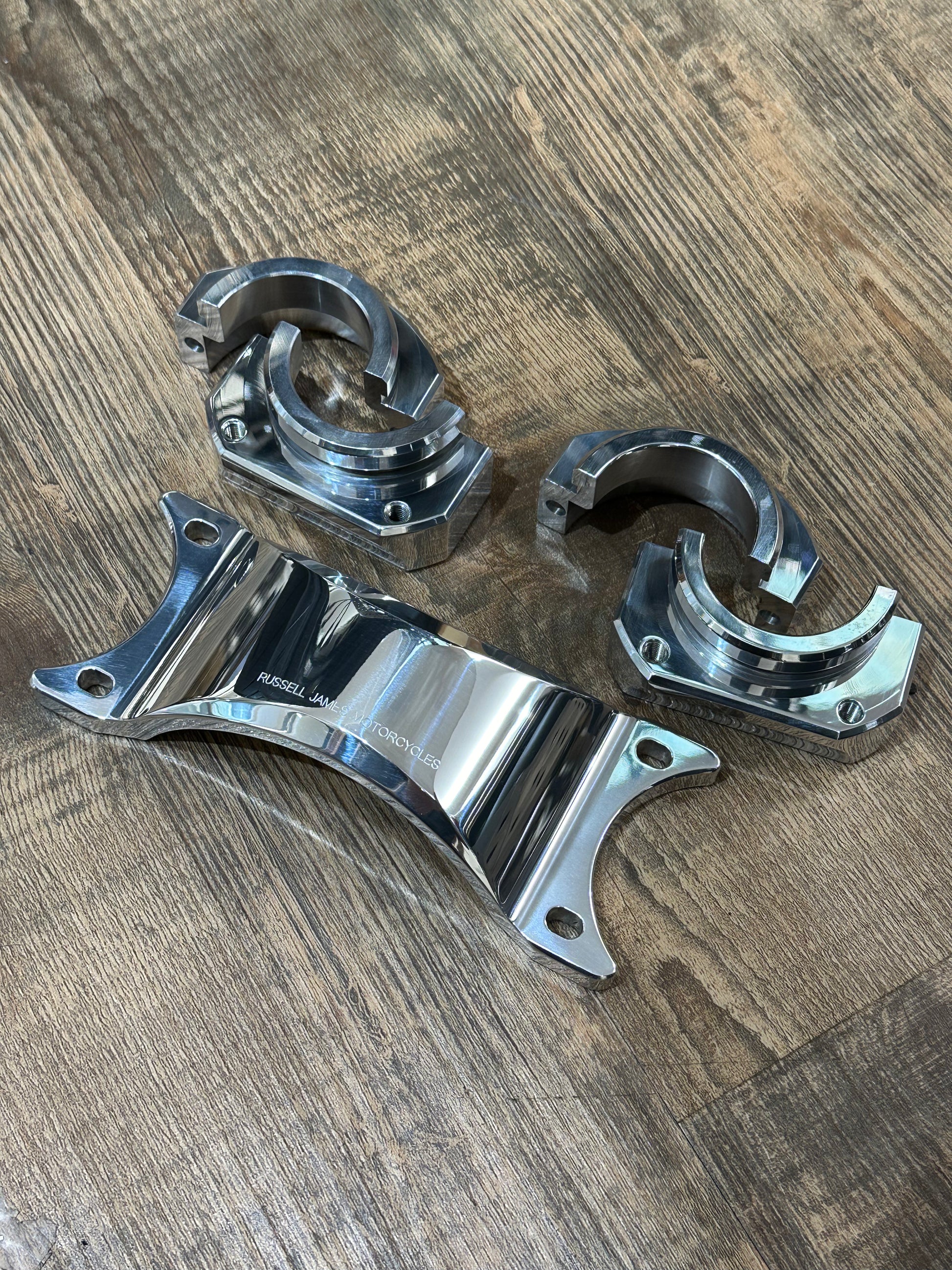

Three piece motorcycle fork brace (Stabilizer) consisting of two leg clamps and a top plate that is designed to help alleviate twist and wobble on the front end of your motorcycle, this should also help with front end feel when cornering.

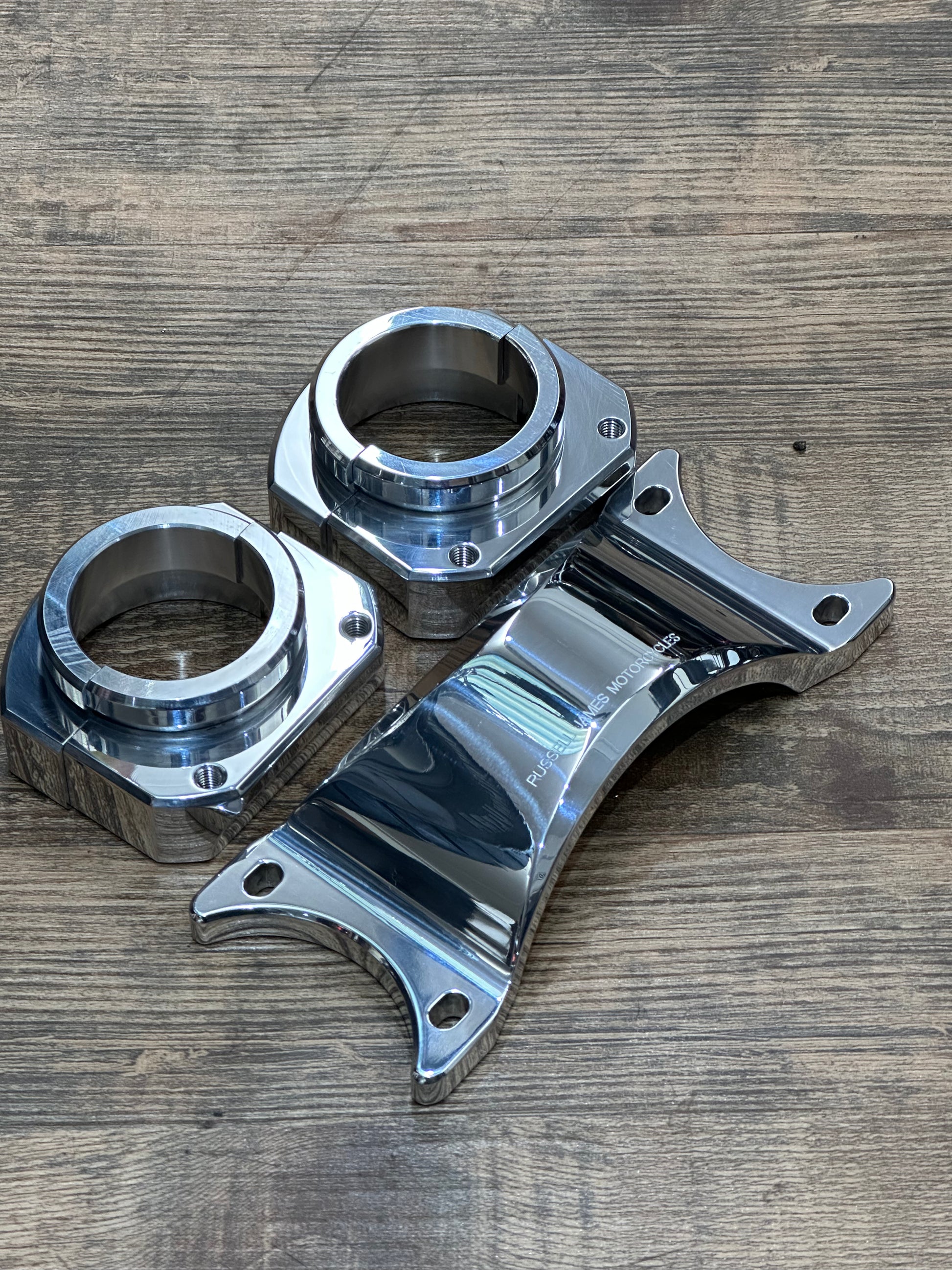

This brace has 57mm leg clamps with and an arched top plate with underside relief, stanchion centres are 194mm
Fitting Instructions
This motorcycle fork brace is designed to be fitted by a competent person, if you are at all uncertain please contact your local motorcycle garage. For those that are confident here goes
To fit this brace to your motorcycle first of all raise the fork dust caps (where fitted) as the brace must not be fitted over these, place the leg clamps around the top of the fork leg by removing the M6 Allen head screws (5mm Allen key required) put around the stanchions and lower into place on the fork leg. Screw these up lightly so you can still move the clamp on the fork leg but try to keep the gap as even as possible each side, once both leg clamps are in place put the top plate on and align up with the screw holes. These take the M6 x 20mm button head screws (4mm Allen key required) and again put all four screws in and lightly tighten so you can now line up the leg clamps and top plate so all is even and square, all the screws can now be tightened and the order would be the leg clamps first then the top plate. Refit your dust caps/boots
Torque setting for M6 stainless bolts are in N-m 8.7 Dry or 7.8 lubricated
*Photos are for illustrative purposes only and may not show exact model
